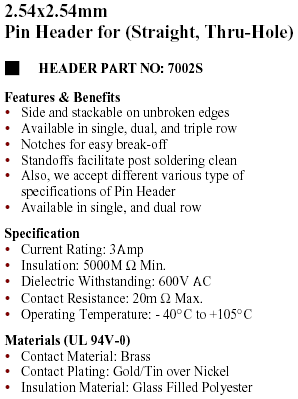

PART NO.7002S

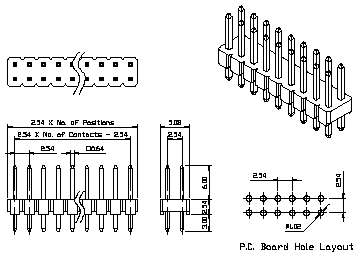

.100"X100"(2.54X2.54mm) Pin Header  (Straight, Thru-Hole, Single/Dual/Trip Row ¡@
¡@

Accepts housing

9910H
¡@


 6002-XX


7002-XX


8002-XX
Pin PARD NO. Pin PARD NO. Pin PARD NO. Pin PARD NO.
2 7002S-2 22 7002S-22 42 7002S-42 62 7002S-62
4 7002S-4 24 7002S-24 44 7002S-44 64 7002S-64
6 7002S-6 26 7002S-26 46 7002S-46 66 7002S-66
8 7002S-8 28 7002S-28 48 7002S-48 68 7002S-68
10 7002S-10 30 7002S-30 50 7002S-50 70 7002S-70
12 7002S-12 32 7002S-32 52 7002S-52 72 7002S-72
14 7002S-14 34 7002S-34 54 7002S-54 74 7002S-74
16 7002S-16 36 7002S-36 56 7002S-56 76 7002S-76
18 7002S-18 38 7002S-38 58 7002S-58 78 7002S-78
20 7002S-20 40 7002S-40 60 7002S-60 80 7002S-80
