PART NO.8002S

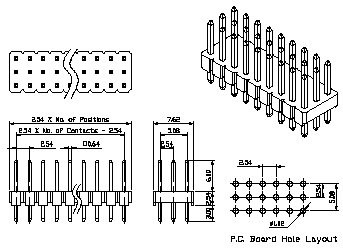

.100"X100"(2.54X2.54mm) Pin Header  (Straight, Thru-Hole, Single/Dual/Trip Row ¡@
¡@

¡@

 ¡@


 6002-XX


7002-XX


8002-XX

Pin PARD NO. Pin PARD NO. Pin PARD NO. Pin PARD NO.
6 8002S-6 39 8002S-39 72 8002S-72 105 8002S-105
9 8002S-9 42 8002S-42 75 8002S-75 108 8002S-108
12 8002S-12 45 8002S-45 78 8002S-78 111 8002S-111
15 8002S-15 48 8002S-48 81 8002S-81 114 8002S-114
18 8002S-18 51 8002S-51 84 8002S-84 117 8002S-117
21 8002S-21 54 8002S-54 87 8002S-87 120 8002S-120
24 8002S-24 57 8002S-57 90 8002S-90 123 8002S-123
27 8002S-27 60 8002S-60 93 8002S-93 126 8002S-126
30 8002S-30 63 8002S-63 96 8002S-96 129 8002S-129
33 8002S-33 66 8002S-66 99 8002S-99 132 8002S-132
36 8002S-36 69 8002S-69 102 8002S-102 ¡@ ¡@
¡@
